Hoses is used to inflate/deflate the pipe plug and to fill the air/water(water hose) into the test area.
Hoses

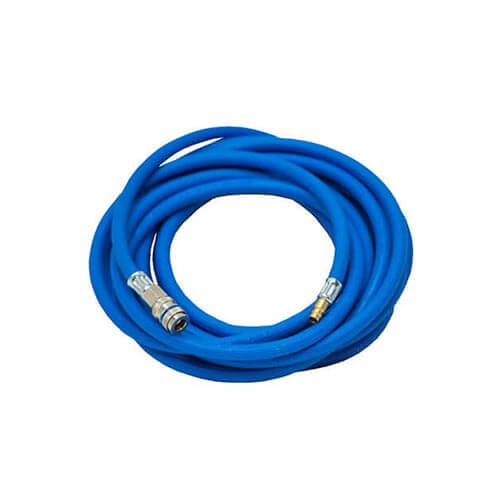

Air Hose (AHX)
Size: 8 mm
Max. Pressure: 12 Bar
Materials:
– Fiber Reinforced Plastic
– Nipple for Quick Release Coupler, Brass
– Quick Release Coupler 8 mm Hose Barb, Brass Nickel Plated
| Model | Length |
|---|---|
| AH5 | 5 Meters |
| AH10 | 10 Meters |
| AH20 | 20 Meters |
| AH50 | 50 Meters |
* Longer hoses are available upon request.
Air Hose with Pressure Gauge (AH / XX PG)
Size: 8 mm
Max. Pressure: 12 Bar
Materials:
– Fiber Reinforced Plastic
– Nipple for Quick Release Coupler, Brass
– Quick Release Coupler 8 mm Hose Barb, Brass Nickel Plated
– Pressure Gauge with scale Range 0-1,6/ 0-2,5/0-4,0/ 0-6,0/0-10,0
| Model | Description |
|---|---|
| AH10/1,6 PG | 10 Meters Hose with 0-1,6 bar Pressure Gauge |
| AH10/2,5 PG | 10 Meters Hose with 0-2,5 bar Pressure Gauge |
| AH10/4,0 PG | 10 Meters Hose with 0-2,5 bar Pressure Gauge |
| AH10/6,0 PG | 10 Meters Hose with 0-6,0 bar Pressure Gauge |
| AH10/10,0 PG | 10 Meters Hose with 0-10,0 bar Pressure Gauge |
* Longer hoses are available upon request.
Air Hose with Double Quick Release Coupler (AH/DQC)
Size: 8 mm
Max. Pressure: 12 Bar
Materials:
– Fiber Reinforced Plastic
– Nipple for Quick Release Coupler, Brass
– Quick Release Coupler 8 mm Hose Barb, Brass Nickel Plated
| Model | Length |
|---|---|
| AH/DQC5 | 5 Meters |
| AH/DQC 10 | 10 Meters |
| AH/DQC 20 | 20 Meters |
| AH/DQC 50 | 50 Meters |
* Longer hoses are available upon request.
Water Hose (WH XX)
Polyurethane Water Hose
Inner Coating: PVC
Size: 1” – 2”
| Model | Description |
|---|---|
| WH10 | Water Hose – 10 Meters |
| WH15 | Water Hose – 15 Meters |
| WH20 | Water Hose – 20 Meters |
| WH50 | Water Hose – 50 Meters |
* Longer hoses are available upon request.
